リサイズ・クロップ・パディング

画像のリサイズとクロップ

画像のサイズを大きくしたり正方形にクロップ（切り抜き）したり…という単純なタスクですが、画像生成においてはとても重要な作業です。

モデルの適正解像度: モデルには「最も性能を発揮できる解像度」があります。
VRAMの節約: うっかり4Kの画像を読み込んで処理すると、一瞬で「Out of memory」になります。
素材の統一: 画像合成などで、複数の素材サイズを揃える必要があります。

出番の多い作業なので、それぞれのノードの違いをしっかり理解しましょう。

リサイズ

Upscale Image ノード

指定した幅・高さの解像度に強制的に変更します。

Upscale_Image.json

{
  "id": "4868028c-000b-496e-b4e0-958cdd175f4a",
  "revision": 0,
  "last_node_id": 59,
  "last_link_id": 82,
  "nodes": [
    {
      "id": 54,
      "type": "PreviewImage",
      "pos": [
        900,
        157
      ],
      "size": [
        429.92777495151813,
        313.2047839407444
      ],
      "flags": {},
      "order": 3,
      "mode": 0,
      "inputs": [
        {
          "name": "images",
          "type": "IMAGE",
          "link": 78
        }
      ],
      "outputs": [],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.71",
        "Node name for S&R": "PreviewImage"
      },
      "widgets_values": []
    },
    {
      "id": 53,
      "type": "LoadImage",
      "pos": [
        141,
        157
      ],
      "size": [
        318.5017680965466,
        400.92742544483326
      ],
      "flags": {},
      "order": 0,
      "mode": 0,
      "inputs": [],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "slot_index": 0,
          "links": [
            77,
            79
          ]
        },
        {
          "name": "MASK",
          "type": "MASK",
          "links": null
        }
      ],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.71",
        "Node name for S&R": "LoadImage"
      },
      "widgets_values": [
        "example.png",
        "image"
      ]
    },
    {
      "id": 52,
      "type": "ImageScale",
      "pos": [
        521,
        157
      ],
      "size": [
        315,
        130
      ],
      "flags": {},
      "order": 1,
      "mode": 0,
      "inputs": [
        {
          "name": "image",
          "type": "IMAGE",
          "link": 77
        }
      ],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "slot_index": 0,
          "links": [
            78
          ]
        }
      ],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.71",
        "Node name for S&R": "ImageScale"
      },
      "widgets_values": [
        "nearest-exact",
        768,
        480,
        "disabled"
      ],
      "color": "#232",
      "bgcolor": "#353"
    },
    {
      "id": 55,
      "type": "ImageScale",
      "pos": [
        521,
        541
      ],
      "size": [
        315,
        130
      ],
      "flags": {},
      "order": 2,
      "mode": 0,
      "inputs": [
        {
          "name": "image",
          "type": "IMAGE",
          "link": 79
        }
      ],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "slot_index": 0,
          "links": [
            82
          ]
        }
      ],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.71",
        "Node name for S&R": "ImageScale"
      },
      "widgets_values": [
        "nearest-exact",
        768,
        480,
        "center"
      ],
      "color": "#323",
      "bgcolor": "#535"
    },
    {
      "id": 59,
      "type": "PreviewImage",
      "pos": [
        900,
        541
      ],
      "size": [
        446.1300000000001,
        311.21900000000016
      ],
      "flags": {},
      "order": 4,
      "mode": 0,
      "inputs": [
        {
          "name": "images",
          "type": "IMAGE",
          "link": 82
        }
      ],
      "outputs": [],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.71",
        "Node name for S&R": "PreviewImage"
      },
      "widgets_values": []
    }
  ],
  "links": [
    [
      77,
      53,
      0,
      52,
      0,
      "IMAGE"
    ],
    [
      78,
      52,
      0,
      54,
      0,
      "IMAGE"
    ],
    [
      79,
      53,
      0,
      55,
      0,
      "IMAGE"
    ],
    [
      82,
      55,
      0,
      59,
      0,
      "IMAGE"
    ]
  ],
  "groups": [],
  "config": {},
  "extra": {
    "ds": {
      "scale": 0.683013455365071,
      "offset": [
        67.34339999999997,
        51.34339999999996
      ]
    },
    "frontendVersion": "1.30.6",
    "VHS_latentpreview": false,
    "VHS_latentpreviewrate": 0,
    "VHS_MetadataImage": true,
    "VHS_KeepIntermediate": true
  },
  "version": 0.4
}

アスペクト比: 元画像と異なる比率を指定すると、画像が歪みます。
crop: center に設定すると、歪ませる代わりに中心を維持してはみ出た部分をクロップ（切り捨て）します。

Upscale Image By ノード

「1.5倍」「0.5倍」のように、倍率でサイズを指定します。アスペクト比は維持されます。

Upscale_Image_By.json

{
  "last_node_id": 59,
  "last_link_id": 85,
  "nodes": [
    {
      "id": 53,
      "type": "LoadImage",
      "pos": {
        "0": 141,
        "1": 157
      },
      "size": {
        "0": 318.50177001953125,
        "1": 400.92742919921875
      },
      "flags": {},
      "order": 0,
      "mode": 0,
      "inputs": [],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "links": [
            84
          ],
          "slot_index": 0,
          "shape": 3
        },
        {
          "name": "MASK",
          "type": "MASK",
          "links": null,
          "shape": 3
        }
      ],
      "properties": {
        "Node name for S&R": "LoadImage"
      },
      "widgets_values": [
        "example.png",
        "image"
      ]
    },
    {
      "id": 59,
      "type": "ImageScaleBy",
      "pos": {
        "0": 522.2508544921875,
        "1": 157
      },
      "size": {
        "0": 315,
        "1": 82
      },
      "flags": {},
      "order": 1,
      "mode": 0,
      "inputs": [
        {
          "name": "image",
          "type": "IMAGE",
          "link": 84
        }
      ],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "links": [
            85
          ],
          "shape": 3,
          "slot_index": 0
        }
      ],
      "properties": {
        "Node name for S&R": "ImageScaleBy"
      },
      "widgets_values": [
        "nearest-exact",
        1.5
      ],
      "color": "#232",
      "bgcolor": "#353"
    },
    {
      "id": 54,
      "type": "PreviewImage",
      "pos": {
        "0": 900,
        "1": 157
      },
      "size": [
        567.1885245612689,
        593.7392258993473
      ],
      "flags": {},
      "order": 2,
      "mode": 0,
      "inputs": [
        {
          "name": "images",
          "type": "IMAGE",
          "link": 85
        }
      ],
      "outputs": [],
      "properties": {
        "Node name for S&R": "PreviewImage"
      },
      "widgets_values": []
    }
  ],
  "links": [
    [
      84,
      53,
      0,
      59,
      0,
      "IMAGE"
    ],
    [
      85,
      59,
      0,
      54,
      0,
      "IMAGE"
    ]
  ],
  "groups": [],
  "config": {},
  "extra": {
    "ds": {
      "scale": 0.8264462809917354,
      "offset": [
        174.7814754387315,
        91.19389910065289
      ]
    }
  },
  "version": 0.4
}

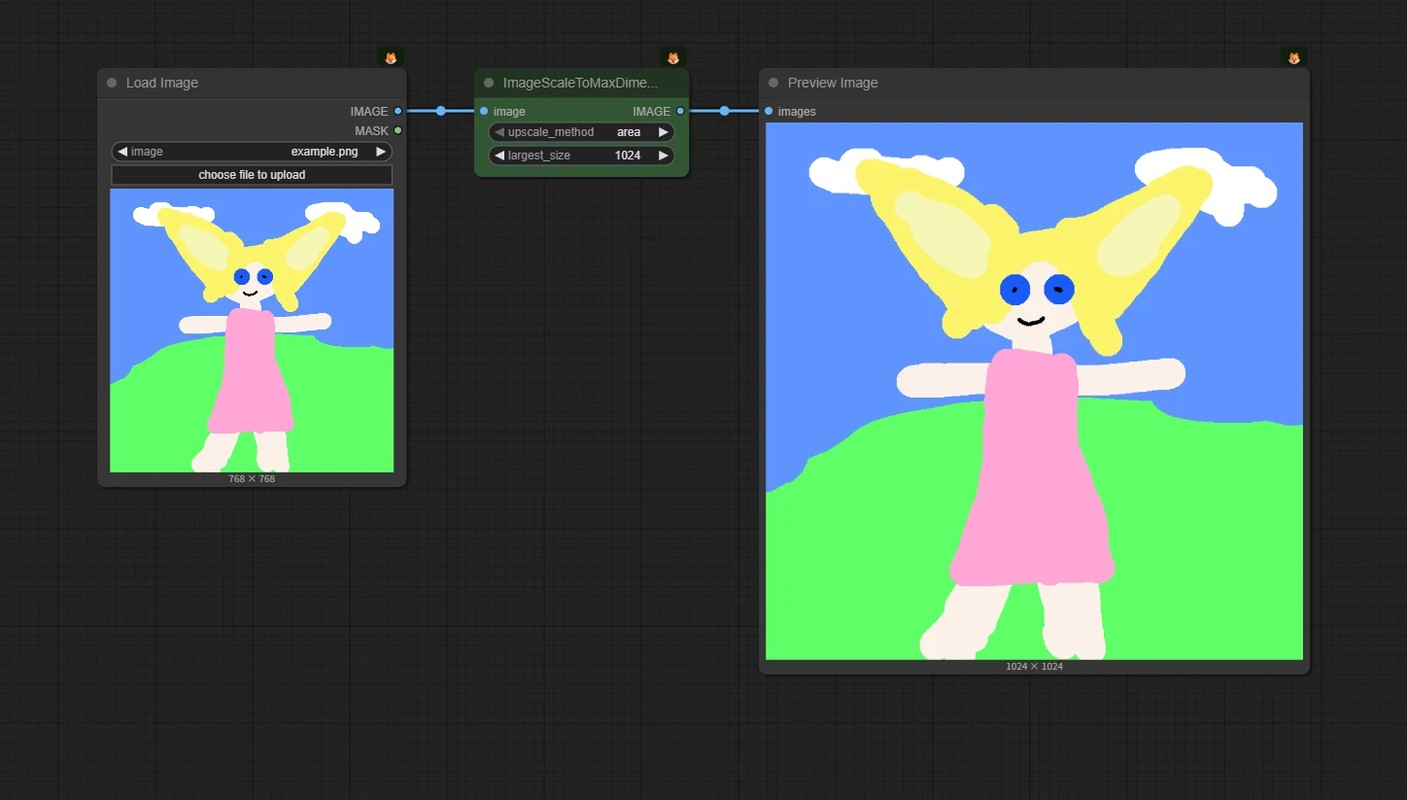

ImageScaleToMaxDimension ノード

画像の長辺が設定したサイズになるように、アスペクト比を保ったままリサイズします。（例：縦長の画像でも横長の画像でも、長い方が1024pxになるようにする）

ImageScaleToMaxDimension.json

{
  "id": "5afabc21-bbd6-4ea3-bd3a-ce4c1dedc9c8",
  "revision": 0,
  "last_node_id": 60,
  "last_link_id": 88,
  "nodes": [
    {
      "id": 53,
      "type": "LoadImage",
      "pos": [
        141,
        157
      ],
      "size": [
        318.50177001953125,
        400.92742919921875
      ],
      "flags": {},
      "order": 0,
      "mode": 0,
      "inputs": [],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "slot_index": 0,
          "links": [
            87
          ]
        },
        {
          "name": "MASK",
          "type": "MASK",
          "links": null
        }
      ],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.59",
        "Node name for S&R": "LoadImage"
      },
      "widgets_values": [
        "example.png",
        "image"
      ]
    },
    {
      "id": 54,
      "type": "PreviewImage",
      "pos": [
        822,
        157
      ],
      "size": [
        567.1885375976562,
        593.7391967773438
      ],
      "flags": {},
      "order": 2,
      "mode": 0,
      "inputs": [
        {
          "name": "images",
          "type": "IMAGE",
          "link": 88
        }
      ],
      "outputs": [],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.59",
        "Node name for S&R": "PreviewImage"
      },
      "widgets_values": []
    },
    {
      "id": 60,
      "type": "ImageScaleToMaxDimension",
      "pos": [
        529,
        157
      ],
      "size": [
        221.20272827148438,
        82
      ],
      "flags": {},
      "order": 1,
      "mode": 0,
      "inputs": [
        {
          "name": "image",
          "type": "IMAGE",
          "link": 87
        }
      ],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "links": [
            88
          ]
        }
      ],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.59",
        "Node name for S&R": "ImageScaleToMaxDimension"
      },
      "widgets_values": [
        "area",
        1024
      ],
      "color": "#232",
      "bgcolor": "#353"
    }
  ],
  "links": [
    [
      87,
      53,
      0,
      60,
      0,
      "IMAGE"
    ],
    [
      88,
      60,
      0,
      54,
      0,
      "IMAGE"
    ]
  ],
  "groups": [],
  "config": {},
  "extra": {
    "ds": {
      "scale": 1.3310000000000004,
      "offset": [
        -41,
        -57
      ]
    },
    "frontendVersion": "1.28.0",
    "VHS_latentpreview": false,
    "VHS_latentpreviewrate": 0,
    "VHS_MetadataImage": true,
    "VHS_KeepIntermediate": true
  },
  "version": 0.4
}

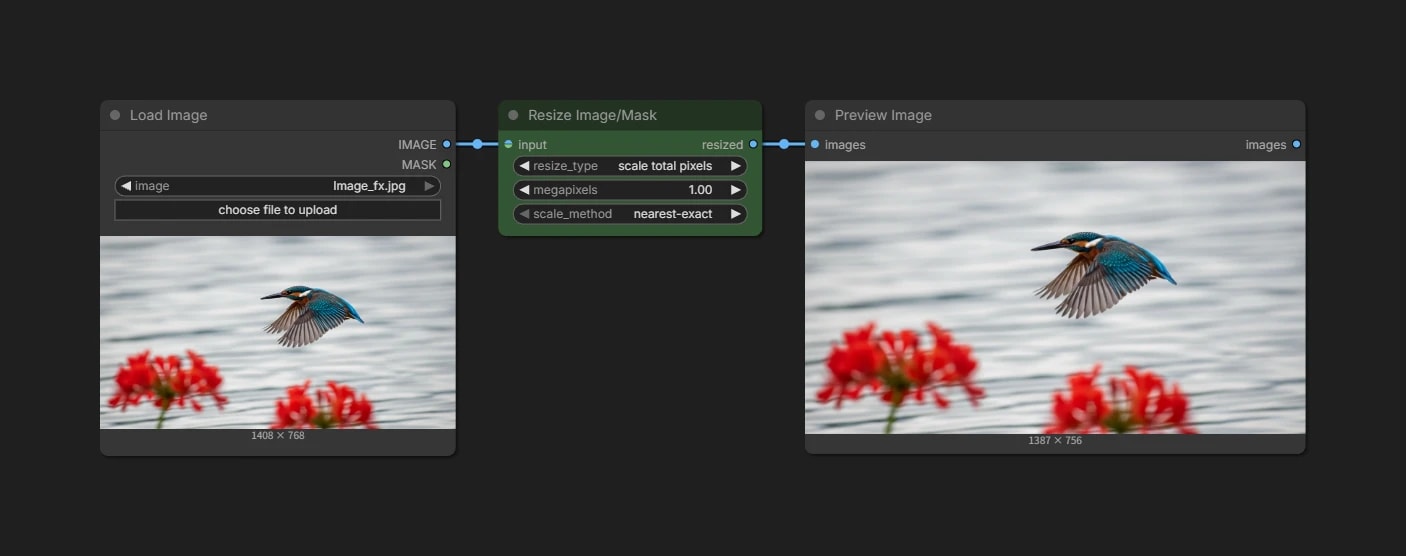

Scale Image to Total Pixels ノード

指定した 総ピクセル数（画素数） になるように、アスペクト比を保ったままリサイズします。

Scale_Image_to_Total_Pixels.json

{
  "id": "33455268-9381-48c0-8439-43e07b8c239c",
  "revision": 0,
  "last_node_id": 4,
  "last_link_id": 2,
  "nodes": [
    {
      "id": 3,
      "type": "ImageScaleToTotalPixels",
      "pos": [
        -116.21300506591797,
        39.75439453125
      ],
      "size": [
        270,
        82
      ],
      "flags": {},
      "order": 1,
      "mode": 0,
      "inputs": [
        {
          "name": "image",
          "type": "IMAGE",
          "link": 2
        }
      ],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "links": [
            1
          ]
        }
      ],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.41",
        "Node name for S&R": "ImageScaleToTotalPixels"
      },
      "widgets_values": [
        "nearest-exact",
        1.0000000000000002
      ],
      "color": "#232",
      "bgcolor": "#353"
    },
    {
      "id": 2,
      "type": "PreviewImage",
      "pos": [
        208.1898651123047,
        39.75439453125
      ],
      "size": [
        463.2727355957031,
        500
      ],
      "flags": {},
      "order": 2,
      "mode": 0,
      "inputs": [
        {
          "name": "images",
          "type": "IMAGE",
          "link": 1
        }
      ],
      "outputs": [],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.41",
        "Node name for S&R": "PreviewImage"
      },
      "widgets_values": []
    },
    {
      "id": 1,
      "type": "LoadImage",
      "pos": [
        -453.8507995605469,
        39.75439453125
      ],
      "size": [
        283.23492431640625,
        380.89422607421875
      ],
      "flags": {},
      "order": 0,
      "mode": 0,
      "inputs": [],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "links": [
            2
          ]
        },
        {
          "name": "MASK",
          "type": "MASK",
          "links": null
        }
      ],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.41",
        "Node name for S&R": "LoadImage"
      },
      "widgets_values": [
        "example.png",
        "image"
      ]
    }
  ],
  "links": [
    [
      1,
      3,
      0,
      2,
      0,
      "IMAGE"
    ],
    [
      2,
      1,
      0,
      3,
      0,
      "IMAGE"
    ]
  ],
  "groups": [],
  "config": {},
  "extra": {
    "ds": {
      "scale": 0.8264462809917356,
      "offset": [
        999.130799560547,
        227.22560546874996
      ]
    },
    "frontendVersion": "1.23.2",
    "VHS_latentpreview": false,
    "VHS_latentpreviewrate": 0,
    "VHS_MetadataImage": true,
    "VHS_KeepIntermediate": true
  },
  "version": 0.4
}

すこし重要な処理です

画像生成モデルは、特定の解像度と様々なアスペクト比の画像で学習されています。モデルが最高の性能を発揮するためには、学習時と同じようなサイズ（総ピクセル数）で画像を生成することが重要です。

このノードを使用すると、元の構図を維持したまま、総ピクセル数を指定して画像を調整できます。便利！

よく使う値（メガピクセル）

目標サイズ	総ピクセル数	設定値 (megapixels)
512 × 512	262,144	0.25
768 × 768	589,824	0.56
1024 × 1024	1,048,576	1.00 (SDXL推奨)
1536 × 1536	2,359,296	2.25

パディング

パディングとは、画像の周囲に余白（黒帯など）を追加して、サイズを調整する処理のことです。

ノードによっては、この余白部分をマスクとして出力できるため、Outpaintingを行う際の下準備として使われます。

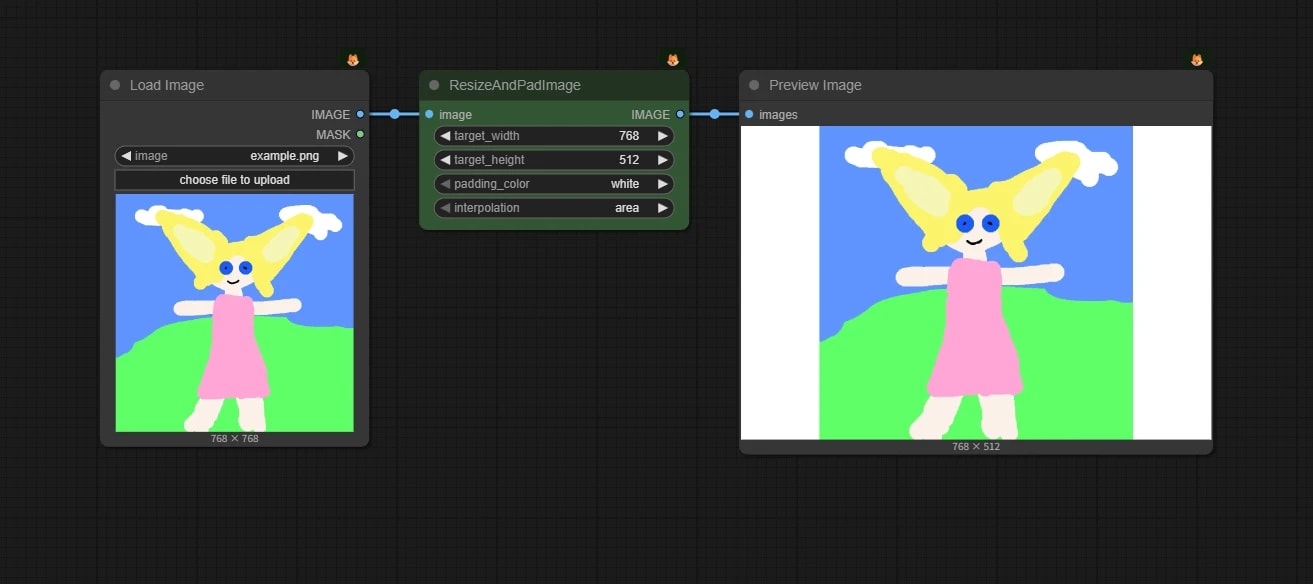

ResizeAndPadImage ノード

指定した解像度に合わせてリサイズし、足りない部分をパディングで埋めます。

ResizeAndPadImage.json

{
  "id": "3c344b31-2cca-43a0-acc2-33295e766391",
  "revision": 0,
  "last_node_id": 16,
  "last_link_id": 15,
  "nodes": [
    {
      "id": 3,
      "type": "PreviewImage",
      "pos": [
        2443.600341796875,
        382.6131591796875
      ],
      "size": [
        474.1802079876393,
        354.5867351287129
      ],
      "flags": {},
      "order": 2,
      "mode": 0,
      "inputs": [
        {
          "name": "images",
          "type": "IMAGE",
          "link": 15
        }
      ],
      "outputs": [],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.44",
        "Node name for S&R": "PreviewImage"
      },
      "widgets_values": []
    },
    {
      "id": 1,
      "type": "LoadImage",
      "pos": [
        1804.466796875,
        382.6131591796875
      ],
      "size": [
        269.2518615722656,
        346.83184814453125
      ],
      "flags": {},
      "order": 0,
      "mode": 0,
      "inputs": [],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "links": [
            14
          ]
        },
        {
          "name": "MASK",
          "type": "MASK",
          "links": null
        }
      ],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.44",
        "Node name for S&R": "LoadImage"
      },
      "widgets_values": [
        "example.png",
        "image"
      ]
    },
    {
      "id": 16,
      "type": "ResizeAndPadImage",
      "pos": [
        2123.6595001220703,
        382.6131591796875
      ],
      "size": [
        270,
        130
      ],
      "flags": {},
      "order": 1,
      "mode": 0,
      "inputs": [
        {
          "name": "image",
          "type": "IMAGE",
          "link": 14
        }
      ],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "links": [
            15
          ]
        }
      ],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.71",
        "Node name for S&R": "ResizeAndPadImage"
      },
      "widgets_values": [
        768,
        512,
        "white",
        "area"
      ],
      "color": "#232",
      "bgcolor": "#353"
    }
  ],
  "links": [
    [
      14,
      1,
      0,
      16,
      0,
      "IMAGE"
    ],
    [
      15,
      16,
      0,
      3,
      0,
      "IMAGE"
    ]
  ],
  "groups": [],
  "config": {},
  "extra": {
    "ds": {
      "scale": 0.8390545288824027,
      "offset": [
        -1704.466796875,
        -282.6131591796875
      ]
    },
    "frontendVersion": "1.30.6",
    "VHS_latentpreview": false,
    "VHS_latentpreviewrate": 0,
    "VHS_MetadataImage": true,
    "VHS_KeepIntermediate": true
  },
  "version": 0.4
}

このノードはパディング部分をマスクとして出力できないため、ほとんど使う場面はないかもしれません。

Pad Image for Outpainting ノード

画像の上下左右に、指定したピクセル数だけ余白を追加します。

Pad_Image_for_Outpainting.json

{
  "id": "3c344b31-2cca-43a0-acc2-33295e766391",
  "revision": 0,
  "last_node_id": 15,
  "last_link_id": 13,
  "nodes": [
    {
      "id": 1,
      "type": "LoadImage",
      "pos": [
        1804.466796875,
        382.6131591796875
      ],
      "size": [
        269.2518615722656,
        346.83184814453125
      ],
      "flags": {},
      "order": 0,
      "mode": 0,
      "inputs": [],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "links": [
            5
          ]
        },
        {
          "name": "MASK",
          "type": "MASK",
          "links": null
        }
      ],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.44",
        "Node name for S&R": "LoadImage"
      },
      "widgets_values": [
        "example.png",
        "image"
      ]
    },
    {
      "id": 3,
      "type": "PreviewImage",
      "pos": [
        2443.600341796875,
        382.6131591796875
      ],
      "size": [
        474.1802079876393,
        354.5867351287129
      ],
      "flags": {},
      "order": 2,
      "mode": 0,
      "inputs": [
        {
          "name": "images",
          "type": "IMAGE",
          "link": 11
        }
      ],
      "outputs": [],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.44",
        "Node name for S&R": "PreviewImage"
      },
      "widgets_values": []
    },
    {
      "id": 11,
      "type": "ImagePadForOutpaint",
      "pos": [
        2123.6595001220703,
        382.6131591796875
      ],
      "size": [
        270,
        174
      ],
      "flags": {},
      "order": 1,
      "mode": 0,
      "inputs": [
        {
          "name": "image",
          "type": "IMAGE",
          "link": 5
        }
      ],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "links": [
            11
          ]
        },
        {
          "name": "MASK",
          "type": "MASK",
          "links": [
            13
          ]
        }
      ],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.71",
        "Node name for S&R": "ImagePadForOutpaint"
      },
      "widgets_values": [
        200,
        0,
        200,
        0,
        100
      ],
      "color": "#232",
      "bgcolor": "#353"
    },
    {
      "id": 15,
      "type": "MaskPreview",
      "pos": [
        2443.3892916386476,
        798.584304191316
      ],
      "size": [
        473.1249524060131,
        350.69641361331855
      ],
      "flags": {},
      "order": 3,
      "mode": 0,
      "inputs": [
        {
          "name": "mask",
          "type": "MASK",
          "link": 13
        }
      ],
      "outputs": [],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.71",
        "Node name for S&R": "MaskPreview"
      },
      "widgets_values": []
    }
  ],
  "links": [
    [
      5,
      1,
      0,
      11,
      0,
      "IMAGE"
    ],
    [
      11,
      11,
      0,
      3,
      0,
      "IMAGE"
    ],
    [
      13,
      11,
      1,
      15,
      0,
      "MASK"
    ]
  ],
  "groups": [],
  "config": {},
  "extra": {
    "ds": {
      "scale": 0.6934334949441344,
      "offset": [
        -1704.466796875,
        -282.6131591796875
      ]
    },
    "frontendVersion": "1.30.6",
    "VHS_latentpreview": false,
    "VHS_latentpreviewrate": 0,
    "VHS_MetadataImage": true,
    "VHS_KeepIntermediate": true
  },
  "version": 0.4
}

余白部分がマスクとして出力されます。

feathering: 余白と画像の境界をぼかします。マスクにしか影響しません。

クロップその他の編集操作

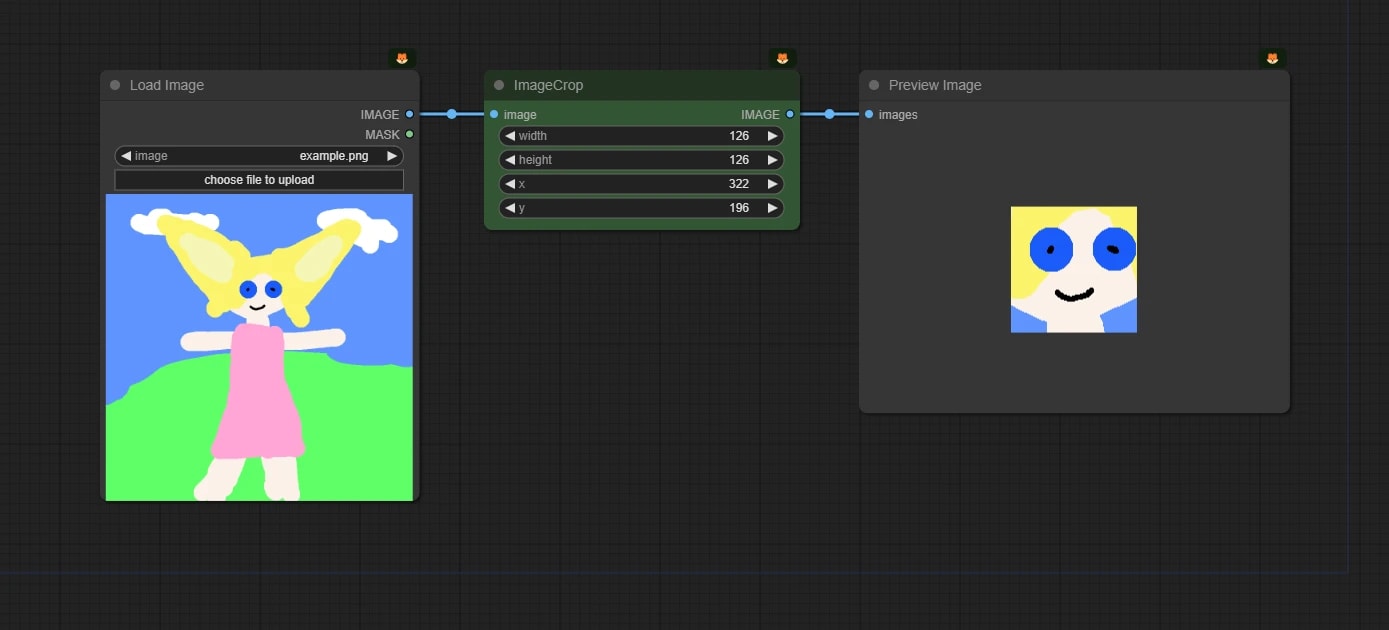

ImageCrop ノード

x, y座標と幅・高さを指定して、画像の一部分を矩形で切り抜きます。

ImageCrop.json

{
  "last_node_id": 58,
  "last_link_id": 83,
  "nodes": [
    {
      "id": 54,
      "type": "PreviewImage",
      "pos": {
        "0": 900,
        "1": 157
      },
      "size": {
        "0": 429.9277648925781,
        "1": 313.20477294921875
      },
      "flags": {},
      "order": 2,
      "mode": 0,
      "inputs": [
        {
          "name": "images",
          "type": "IMAGE",
          "link": 82
        }
      ],
      "outputs": [],
      "properties": {
        "Node name for S&R": "PreviewImage"
      },
      "widgets_values": []
    },
    {
      "id": 53,
      "type": "LoadImage",
      "pos": {
        "0": 141,
        "1": 157
      },
      "size": {
        "0": 318.50177001953125,
        "1": 400.92742919921875
      },
      "flags": {},
      "order": 0,
      "mode": 0,
      "inputs": [],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "links": [
            81
          ],
          "slot_index": 0,
          "shape": 3
        },
        {
          "name": "MASK",
          "type": "MASK",
          "links": null,
          "shape": 3
        }
      ],
      "properties": {
        "Node name for S&R": "LoadImage"
      },
      "widgets_values": [
        "example.png",
        "image"
      ]
    },
    {
      "id": 58,
      "type": "ImageCrop",
      "pos": {
        "0": 525,
        "1": 157
      },
      "size": {
        "0": 315,
        "1": 130
      },
      "flags": {},
      "order": 1,
      "mode": 0,
      "inputs": [
        {
          "name": "image",
          "type": "IMAGE",
          "link": 81
        }
      ],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "links": [
            82
          ],
          "slot_index": 0,
          "shape": 3
        }
      ],
      "properties": {
        "Node name for S&R": "ImageCrop"
      },
      "widgets_values": [
        126,
        126,
        322,
        196
      ],
      "color": "#232",
      "bgcolor": "#353"
    }
  ],
  "links": [
    [
      81,
      53,
      0,
      58,
      0,
      "IMAGE"
    ],
    [
      82,
      58,
      0,
      54,
      0,
      "IMAGE"
    ]
  ],
  "groups": [],
  "config": {},
  "extra": {
    "ds": {
      "scale": 0.9090909090909091,
      "offset": [
        222.40137209879546,
        8.659338924062864
      ]
    }
  },
  "version": 0.4
}

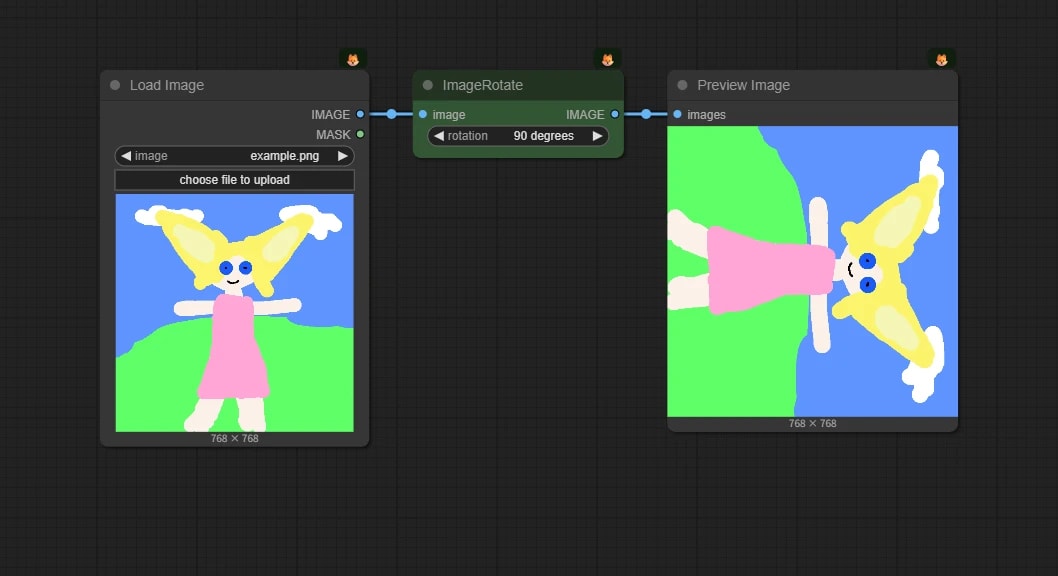

ImageRotate ノード

画像を90度 / 180度 / 270度回転させます。

ImageRotate.json

{
  "id": "3c344b31-2cca-43a0-acc2-33295e766391",
  "revision": 0,
  "last_node_id": 8,
  "last_link_id": 2,
  "nodes": [
    {
      "id": 1,
      "type": "LoadImage",
      "pos": [
        1804.466796875,
        382.6131591796875
      ],
      "size": [
        269.2518615722656,
        346.83184814453125
      ],
      "flags": {},
      "order": 0,
      "mode": 0,
      "inputs": [],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "links": [
            1
          ]
        },
        {
          "name": "MASK",
          "type": "MASK",
          "links": null
        }
      ],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.44",
        "Node name for S&R": "LoadImage"
      },
      "widgets_values": [
        "example.png",
        "image"
      ]
    },
    {
      "id": 3,
      "type": "PreviewImage",
      "pos": [
        2371.87158203125,
        382.6131591796875
      ],
      "size": [
        290.6402893066406,
        331.94219970703125
      ],
      "flags": {},
      "order": 2,
      "mode": 0,
      "inputs": [
        {
          "name": "images",
          "type": "IMAGE",
          "link": 2
        }
      ],
      "outputs": [],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.44",
        "Node name for S&R": "PreviewImage"
      },
      "widgets_values": []
    },
    {
      "id": 2,
      "type": "ImageRotate",
      "pos": [
        2117.247314453125,
        382.6131591796875
      ],
      "size": [
        211.09579467773438,
        58
      ],
      "flags": {},
      "order": 1,
      "mode": 0,
      "inputs": [
        {
          "name": "image",
          "type": "IMAGE",
          "link": 1
        }
      ],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "links": [
            2
          ]
        }
      ],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.44",
        "Node name for S&R": "ImageRotate"
      },
      "widgets_values": [
        "90 degrees"
      ],
      "color": "#232",
      "bgcolor": "#353"
    }
  ],
  "links": [
    [
      1,
      1,
      0,
      2,
      0,
      "IMAGE"
    ],
    [
      2,
      2,
      0,
      3,
      0,
      "IMAGE"
    ]
  ],
  "groups": [],
  "config": {},
  "extra": {
    "ds": {
      "scale": 1.035579600000038,
      "offset": [
        -1704.466796875,
        -282.6131591796875
      ]
    },
    "frontendVersion": "1.24.0",
    "VHS_latentpreview": false,
    "VHS_latentpreviewrate": 0,
    "VHS_MetadataImage": true,
    "VHS_KeepIntermediate": true
  },
  "version": 0.4
}

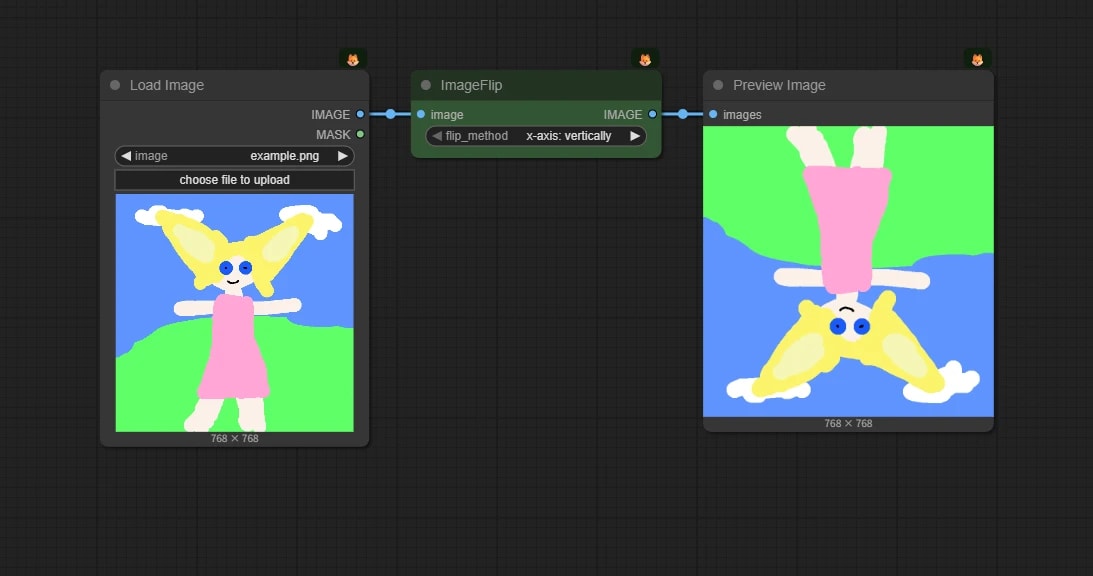

ImageFlip ノード

画像を水平 / 垂直方向に反転させます。

ImageFlip.json

{
  "id": "3c344b31-2cca-43a0-acc2-33295e766391",
  "revision": 0,
  "last_node_id": 10,
  "last_link_id": 4,
  "nodes": [
    {
      "id": 1,
      "type": "LoadImage",
      "pos": [
        1804.466796875,
        382.6131591796875
      ],
      "size": [
        269.2518615722656,
        346.83184814453125
      ],
      "flags": {},
      "order": 0,
      "mode": 0,
      "inputs": [],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "links": [
            3
          ]
        },
        {
          "name": "MASK",
          "type": "MASK",
          "links": null
        }
      ],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.44",
        "Node name for S&R": "LoadImage"
      },
      "widgets_values": [
        "example.png",
        "image"
      ]
    },
    {
      "id": 10,
      "type": "ImageFlip",
      "pos": [
        2115.31591796875,
        382.6131591796875
      ],
      "size": [
        250.68714904785156,
        58
      ],
      "flags": {},
      "order": 1,
      "mode": 0,
      "inputs": [
        {
          "name": "image",
          "type": "IMAGE",
          "link": 3
        }
      ],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "links": [
            4
          ]
        }
      ],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.44",
        "Node name for S&R": "ImageFlip"
      },
      "widgets_values": [
        "x-axis: vertically"
      ],
      "color": "#232",
      "bgcolor": "#353"
    },
    {
      "id": 3,
      "type": "PreviewImage",
      "pos": [
        2407.600341796875,
        382.6131591796875
      ],
      "size": [
        290.6402893066406,
        331.94219970703125
      ],
      "flags": {},
      "order": 2,
      "mode": 0,
      "inputs": [
        {
          "name": "images",
          "type": "IMAGE",
          "link": 4
        }
      ],
      "outputs": [],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.44",
        "Node name for S&R": "PreviewImage"
      },
      "widgets_values": []
    }
  ],
  "links": [
    [
      3,
      1,
      0,
      10,
      0,
      "IMAGE"
    ],
    [
      4,
      10,
      0,
      3,
      0,
      "IMAGE"
    ]
  ],
  "groups": [],
  "config": {},
  "extra": {
    "ds": {
      "scale": 1.035579600000038,
      "offset": [
        -1704.466796875,
        -282.6131591796875
      ]
    },
    "frontendVersion": "1.24.0",
    "VHS_latentpreview": false,
    "VHS_latentpreviewrate": 0,
    "VHS_MetadataImage": true,
    "VHS_KeepIntermediate": true
  },
  "version": 0.4
}

Resize Image v2 ノード

これは kijai/ComfyUI-KJNodes に含まれるノードです。

上記のリサイズ・クロップ・パディングが一つにまとめられたようなノードです。

それ以外に重要な処理として、画像をNの倍数の解像度にリサイズすることができます。

パラメータ名	説明
width / height	目標とする幅と高さ（0なら変更なし）
upscale_method	リサイズ時の補間方法（nearest, bilinearなど）
keep_proportion	stretch, pad, crop, etc.
pad_color	パディング時の色（RGB）
crop_position	center, top, bottom, left, right
divisible_by	この値の倍数の解像度にリサイズされます（例：32, 64）

Crop_to_multiple_of_32.json

{
  "id": "4868028c-000b-496e-b4e0-958cdd175f4a",
  "revision": 0,
  "last_node_id": 65,
  "last_link_id": 92,
  "nodes": [
    {
      "id": 53,
      "type": "LoadImage",
      "pos": [
        73.72727272727276,
        158.8181818181818
      ],
      "size": [
        318.5017680965466,
        400.92742544483326
      ],
      "flags": {},
      "order": 0,
      "mode": 0,
      "inputs": [],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "slot_index": 0,
          "links": [
            91
          ]
        },
        {
          "name": "MASK",
          "type": "MASK",
          "links": null
        }
      ],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.71",
        "Node name for S&R": "LoadImage"
      },
      "widgets_values": [
        "example.png",
        "image"
      ]
    },
    {
      "id": 65,
      "type": "PreviewImage",
      "pos": [
        780.227181818181,
        158.8181818181818
      ],
      "size": [
        394.5454545454543,
        443.52066115702473
      ],
      "flags": {},
      "order": 2,
      "mode": 0,
      "inputs": [
        {
          "name": "images",
          "type": "IMAGE",
          "link": 92
        }
      ],
      "outputs": [],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.71",
        "Node name for S&R": "PreviewImage"
      },
      "widgets_values": []
    },
    {
      "id": 64,
      "type": "ImageResizeKJv2",
      "pos": [
        451.22811132100014,
        158.8181818181818
      ],
      "size": [
        270,
        336
      ],
      "flags": {},
      "order": 1,
      "mode": 0,
      "inputs": [
        {
          "name": "image",
          "type": "IMAGE",
          "link": 91
        },
        {
          "name": "mask",
          "shape": 7,
          "type": "MASK",
          "link": null
        }
      ],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "links": [
            92
          ]
        },
        {
          "name": "width",
          "type": "INT",
          "links": null
        },
        {
          "name": "height",
          "type": "INT",
          "links": null
        },
        {
          "name": "mask",
          "type": "MASK",
          "links": null
        }
      ],
      "properties": {
        "cnr_id": "comfyui-kjnodes",
        "ver": "c661baadd9683c0033cd2a6ad90157c6d099a6c2",
        "Node name for S&R": "ImageResizeKJv2"
      },
      "widgets_values": [
        0,
        0,
        "nearest-exact",
        "crop",
        "0, 0, 0",
        "center",
        8,
        "cpu",
        "<tr><td>Output: </td><td><b>1</b> x <b>768</b> x <b>768 | 6.75MB</b></td></tr>"
      ],
      "color": "#232",
      "bgcolor": "#353"
    }
  ],
  "links": [
    [
      91,
      53,
      0,
      64,
      0,
      "IMAGE"
    ],
    [
      92,
      64,
      0,
      65,
      0,
      "IMAGE"
    ]
  ],
  "groups": [],
  "config": {},
  "extra": {
    "ds": {
      "scale": 0.8264462809917354,
      "offset": [
        26.272727272727238,
        -58.81818181818181
      ]
    },
    "frontendVersion": "1.30.6",
    "VHS_latentpreview": false,
    "VHS_latentpreviewrate": 0,
    "VHS_MetadataImage": true,
    "VHS_KeepIntermediate": true
  },
  "version": 0.4
}

画像を32の倍数の解像度にリサイズするだけの設定です。

divisible_by: この値の倍数の解像度にリサイズされます
単にこの操作だけしたい場合は、他のパラメータは0にします。

なぜこの操作が重要なのか?

というと、VAEというものに関わってきます。詳しくは8の倍数の解像度しか生成できないのはなぜ？で解説しますが、ともかく、生成AIは微妙な解像度の画像を生成することが出来ません。

基本的に、ComfyUIは内部で自動でクロップするため、このノードを使う必要は無いのですが、指定解像度でないとエラーが出たり、入力した画像と出力した画像のピクセルを完璧に合わせたいときなどに使用することがあります。

画像情報の取得

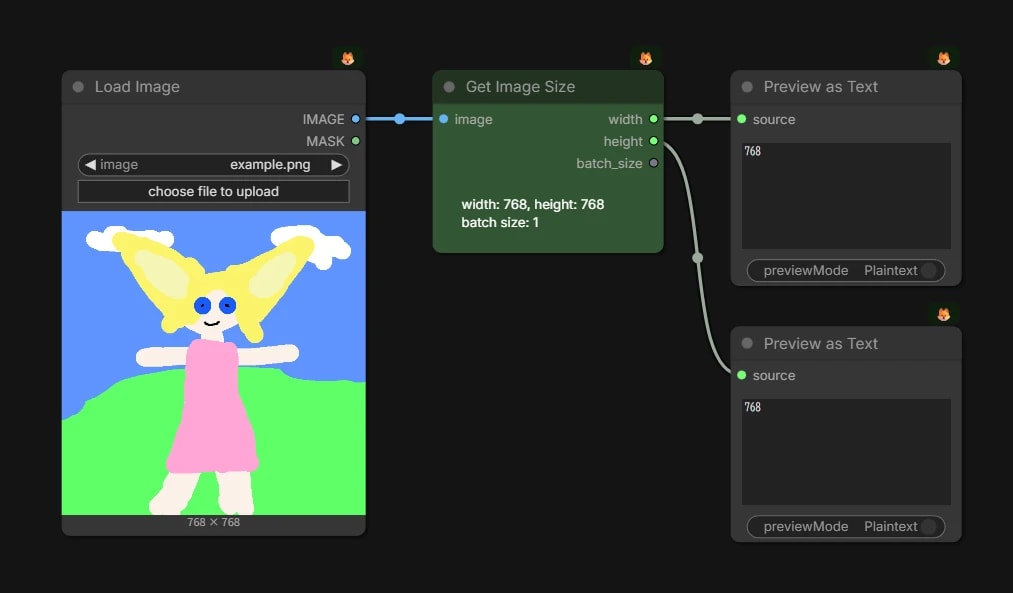

Get Image Size ノード

画像の幅(width)と高さ(height)、バッチサイズ（枚数）を数値として出力します。

Get_Image_Size.json

{
  "id": "c4311028-f464-4d21-a079-ea6457b21328",
  "revision": 0,
  "last_node_id": 11,
  "last_link_id": 13,
  "nodes": [
    {
      "id": 5,
      "type": "LoadImage",
      "pos": [
        1429.7952880859375,
        565.1294555664062
      ],
      "size": [
        276.28009033203125,
        554.1300048828125
      ],
      "flags": {},
      "order": 0,
      "mode": 0,
      "inputs": [],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "links": [
            5
          ]
        },
        {
          "name": "MASK",
          "type": "MASK",
          "links": null
        }
      ],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.36",
        "Node name for S&R": "LoadImage"
      },
      "widgets_values": [
        "スバルダック.png",
        "image"
      ]
    },
    {
      "id": 8,
      "type": "PreviewImage",
      "pos": [
        2414.51318359375,
        565.1294555664062
      ],
      "size": [
        301.70001220703125,
        395.6000061035156
      ],
      "flags": {},
      "order": 4,
      "mode": 0,
      "inputs": [
        {
          "name": "images",
          "type": "IMAGE",
          "link": 8
        }
      ],
      "outputs": [],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.36",
        "Node name for S&R": "PreviewImage"
      },
      "widgets_values": []
    },
    {
      "id": 2,
      "type": "LoadImage",
      "pos": [
        1429.7952880859375,
        120.70742797851562
      ],
      "size": [
        276.28009033203125,
        393.20001220703125
      ],
      "flags": {},
      "order": 1,
      "mode": 0,
      "inputs": [],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "links": [
            9
          ]
        },
        {
          "name": "MASK",
          "type": "MASK",
          "links": null
        }
      ],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.36",
        "Node name for S&R": "LoadImage"
      },
      "widgets_values": [
        "example.png",
        "image"
      ]
    },
    {
      "id": 10,
      "type": "GetImageSize",
      "pos": [
        1754.6292724609375,
        120.70742797851562
      ],
      "size": [
        210,
        116
      ],
      "flags": {},
      "order": 2,
      "mode": 0,
      "inputs": [
        {
          "name": "image",
          "type": "IMAGE",
          "link": 9
        }
      ],
      "outputs": [
        {
          "name": "width",
          "type": "INT",
          "links": [
            12
          ]
        },
        {
          "name": "height",
          "type": "INT",
          "links": [
            13
          ]
        }
      ],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.39",
        "Node name for S&R": "GetImageSize"
      },
      "widgets_values": [
        "width: 768, height: 768"
      ],
      "color": "#232",
      "bgcolor": "#353"
    },
    {
      "id": 7,
      "type": "ImageScale",
      "pos": [
        2096.332275390625,
        565.1294555664062
      ],
      "size": [
        270,
        130
      ],
      "flags": {},
      "order": 3,
      "mode": 0,
      "inputs": [
        {
          "name": "image",
          "type": "IMAGE",
          "link": 5
        },
        {
          "name": "width",
          "type": "INT",
          "widget": {
            "name": "width"
          },
          "link": 12
        },
        {
          "name": "height",
          "type": "INT",
          "widget": {
            "name": "height"
          },
          "link": 13
        }
      ],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "links": [
            8
          ]
        }
      ],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.36",
        "Node name for S&R": "ImageScale"
      },
      "widgets_values": [
        "nearest-exact",
        512,
        512,
        "center"
      ],
      "color": "#323",
      "bgcolor": "#535"
    }
  ],
  "links": [
    [
      5,
      5,
      0,
      7,
      0,
      "IMAGE"
    ],
    [
      8,
      7,
      0,
      8,
      0,
      "IMAGE"
    ],
    [
      9,
      2,
      0,
      10,
      0,
      "IMAGE"
    ],
    [
      12,
      10,
      0,
      7,
      1,
      "INT"
    ],
    [
      13,
      10,
      1,
      7,
      2,
      "INT"
    ]
  ],
  "groups": [],
  "config": {},
  "extra": {
    "ds": {
      "scale": 0.9090909090909091,
      "offset": [
        -1329.7952880859375,
        -20.707427978515625
      ]
    },
    "frontendVersion": "1.22.0",
    "VHS_latentpreview": false,
    "VHS_latentpreviewrate": 0,
    "VHS_MetadataImage": true,
    "VHS_KeepIntermediate": true
  },
  "version": 0.4
}

取得したサイズを Upscale Image に繋げば、別の画像を「全く同じサイズ」にすることができます。
- 非常によく使う処理です。

少し応用

これまでのノードを組み合わせて、少し複雑な画像加工をしてみましょう

画像を半分にクロップ

Crop_to_half_size.json

{
  "id": "4868028c-000b-496e-b4e0-958cdd175f4a",
  "revision": 0,
  "last_node_id": 63,
  "last_link_id": 89,
  "nodes": [
    {
      "id": 53,
      "type": "LoadImage",
      "pos": [
        73.72727272727276,
        158.8181818181818
      ],
      "size": [
        318.5017680965466,
        400.92742544483326
      ],
      "flags": {},
      "order": 0,
      "mode": 0,
      "inputs": [],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "slot_index": 0,
          "links": [
            84,
            88
          ]
        },
        {
          "name": "MASK",
          "type": "MASK",
          "links": null
        }
      ],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.71",
        "Node name for S&R": "LoadImage"
      },
      "widgets_values": [
        "example.png",
        "image"
      ]
    },
    {
      "id": 62,
      "type": "ImageCrop",
      "pos": [
        931.9558227064256,
        158.8181818181818
      ],
      "size": [
        270,
        130
      ],
      "flags": {},
      "order": 3,
      "mode": 0,
      "inputs": [
        {
          "name": "image",
          "type": "IMAGE",
          "link": 88
        },
        {
          "name": "width",
          "type": "INT",
          "widget": {
            "name": "width"
          },
          "link": 86
        },
        {
          "name": "height",
          "type": "INT",
          "widget": {
            "name": "height"
          },
          "link": 87
        }
      ],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "links": [
            89
          ]
        }
      ],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.71",
        "Node name for S&R": "ImageCrop"
      },
      "widgets_values": [
        512,
        512,
        0,
        0
      ],
      "color": "#232",
      "bgcolor": "#353"
    },
    {
      "id": 61,
      "type": "SimpleMath+",
      "pos": [
        682.0468954122235,
        245.45250567287064
      ],
      "size": [
        210,
        78
      ],
      "flags": {},
      "order": 2,
      "mode": 0,
      "inputs": [
        {
          "name": "a",
          "shape": 7,
          "type": "INT,FLOAT",
          "link": 85
        },
        {
          "name": "b",
          "shape": 7,
          "type": "INT,FLOAT",
          "link": null
        }
      ],
      "outputs": [
        {
          "name": "INT",
          "type": "INT",
          "links": [
            86
          ]
        },
        {
          "name": "FLOAT",
          "type": "FLOAT",
          "links": null
        }
      ],
      "properties": {
        "cnr_id": "comfyui_essentials",
        "ver": "1.1.0",
        "Node name for S&R": "SimpleMath+"
      },
      "widgets_values": [
        "a / 2"
      ],
      "color": "#232",
      "bgcolor": "#353"
    },
    {
      "id": 60,
      "type": "GetImageSize",
      "pos": [
        432.13796811802143,
        246.82201179564242
      ],
      "size": [
        210,
        136
      ],
      "flags": {},
      "order": 1,
      "mode": 0,
      "inputs": [
        {
          "name": "image",
          "type": "IMAGE",
          "link": 84
        }
      ],
      "outputs": [
        {
          "name": "width",
          "type": "INT",
          "links": [
            85
          ]
        },
        {
          "name": "height",
          "type": "INT",
          "links": [
            87
          ]
        },
        {
          "name": "batch_size",
          "type": "INT",
          "links": null
        }
      ],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.71",
        "Node name for S&R": "GetImageSize"
      },
      "widgets_values": [
        "width: 768, height: 768\n batch size: 1"
      ],
      "color": "#232",
      "bgcolor": "#353"
    },
    {
      "id": 63,
      "type": "PreviewImage",
      "pos": [
        1241.8647500006277,
        158.8181818181818
      ],
      "size": [
        225.18399999999997,
        371.114
      ],
      "flags": {},
      "order": 4,
      "mode": 0,
      "inputs": [
        {
          "name": "images",
          "type": "IMAGE",
          "link": 89
        }
      ],
      "outputs": [],
      "properties": {
        "cnr_id": "comfy-core",
        "ver": "0.3.71",
        "Node name for S&R": "PreviewImage"
      },
      "widgets_values": []
    }
  ],
  "links": [
    [
      84,
      53,
      0,
      60,
      0,
      "IMAGE"
    ],
    [
      85,
      60,
      0,
      61,
      0,
      "INT,FLOAT"
    ],
    [
      86,
      61,
      0,
      62,
      1,
      "INT"
    ],
    [
      87,
      60,
      1,
      62,
      2,
      "INT"
    ],
    [
      88,
      53,
      0,
      62,
      0,
      "IMAGE"
    ],
    [
      89,
      62,
      0,
      63,
      0,
      "IMAGE"
    ]
  ],
  "groups": [],
  "config": {},
  "extra": {
    "ds": {
      "scale": 0.7513148009015778,
      "offset": [
        94.15372727272724,
        67.6268181818182
      ]
    },
    "frontendVersion": "1.30.6",
    "VHS_latentpreview": false,
    "VHS_latentpreviewrate": 0,
    "VHS_MetadataImage": true,
    "VHS_KeepIntermediate": true
  },
  "version": 0.4
}

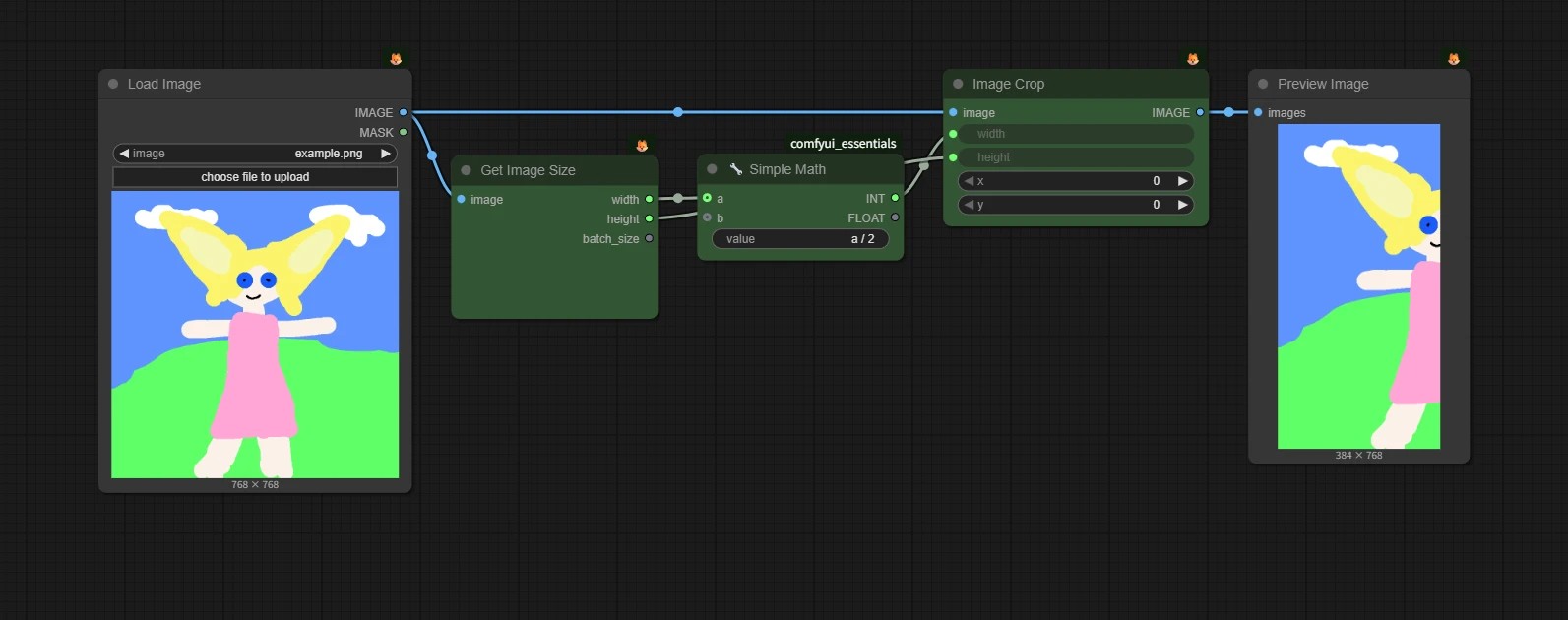

画像のサイズを取得
Simple math ノードで幅の半分の長さを計算
ImageCrop ノードに計算した幅を入力し、半分にクロップ
