What is Wan 2.1 VACE?

Wan 2.1 VACE is an editing model for Wan 2.1 video generation.

It has features that summarize ControlNet for video, inpainting / outpainting / reference2video into a single node (WanVaceToVideo).

  • Control "movement only" with pose or depth map for existing videos
  • Swap characters or adapt styles based on reference images
  • Inpaint / outpaint only specific areas
  • Generate video continuation (Extension), loop, or create in-between frames

You can handle these things while maintaining the generation quality of Wan 2.1.

Recommended Settings

  • Recommended Resolution
    • Around 720p, and multiple of 16
  • Maximum Frames
    • 81 frames

Model Download

For Wan 2.1 VACE, use a VACE-dedicated diffusion model separate from the normal T2V model. Here we only handle 14B.

📂ComfyUI/
└── 📂models/
    ├── 📂diffusion_models/
    │   └── wan2.1_vace_14B_fp16.safetensors
    ├── 📂text_encoders/
    │   └── umt5_xxl_fp8_e4m3fn_scaled.safetensors
    ├── 📂unet/
    │   └── Wan2.1_14B_VACE-XXXX.gguf   ← Only when using gguf
    └── 📂vae/
        └── wan_2.1_vae.safetensors

Basic Structure

In any pattern, the basic form is adding the WanVaceToVideo node based on Wan 2.1 text2video.

  • control_video
    • "Guide video" such as pose, depth map, scribble, optical_flow, layout, etc.
  • control_masks
    • Mask for inpainting
  • reference_image
    • Reference image you want to transfer character or style

ControlNet-like Usage

Control video movement using pose or depth map.

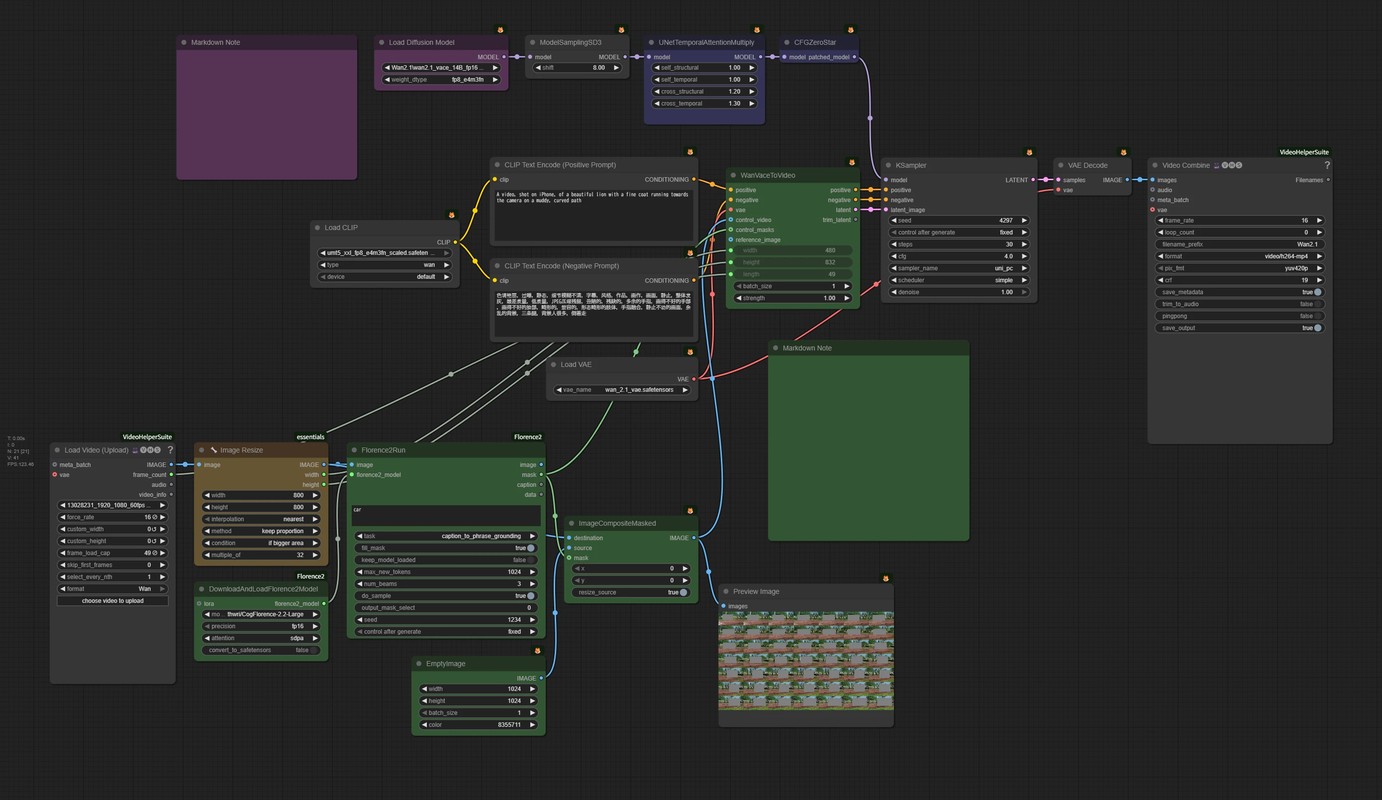

Wan2.1_VACE_control_pose.json
  • Input pose (OpenPose, etc.) or depth map into control_video.
  • Can be used for purposes such as "borrowing only the pose from another video while maintaining the camera work of the original video".

reference2video

Transfer the character or style of the reference image to the video.

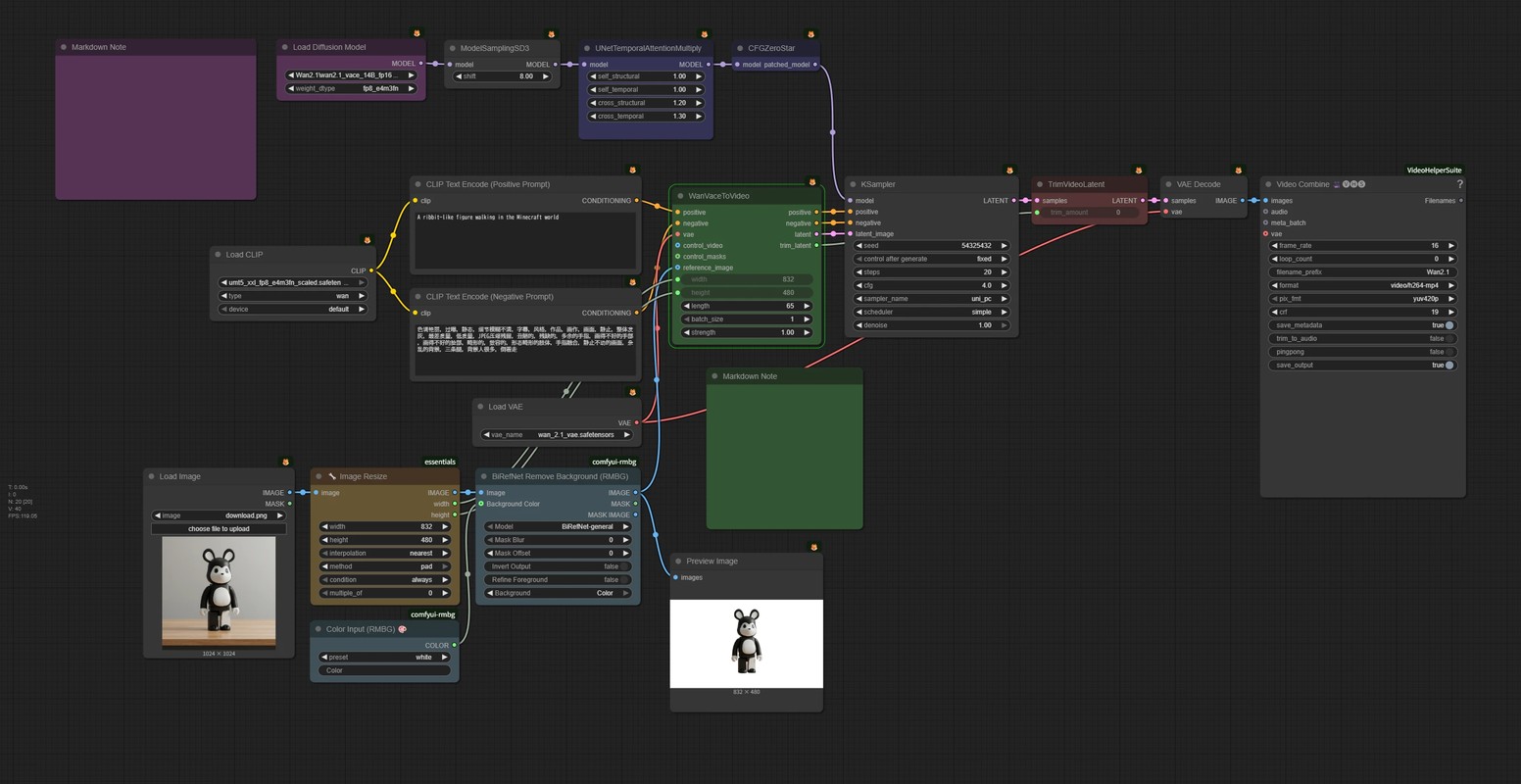

Wan2.1_VACE_reference.json
  • Input character image or illustration into reference_image.
  • It is easier to stabilize if you use an image with the background cut out and filled with white.
  • Since the reference image may remain as is in the beginning of the generated video, it is easier to handle if you cut the initial frames with TrimVideoLatent.
  • Resizing the reference image to match the output resolution also prevents breakdown.

Spatial Inpainting

Replace only a part of the video.

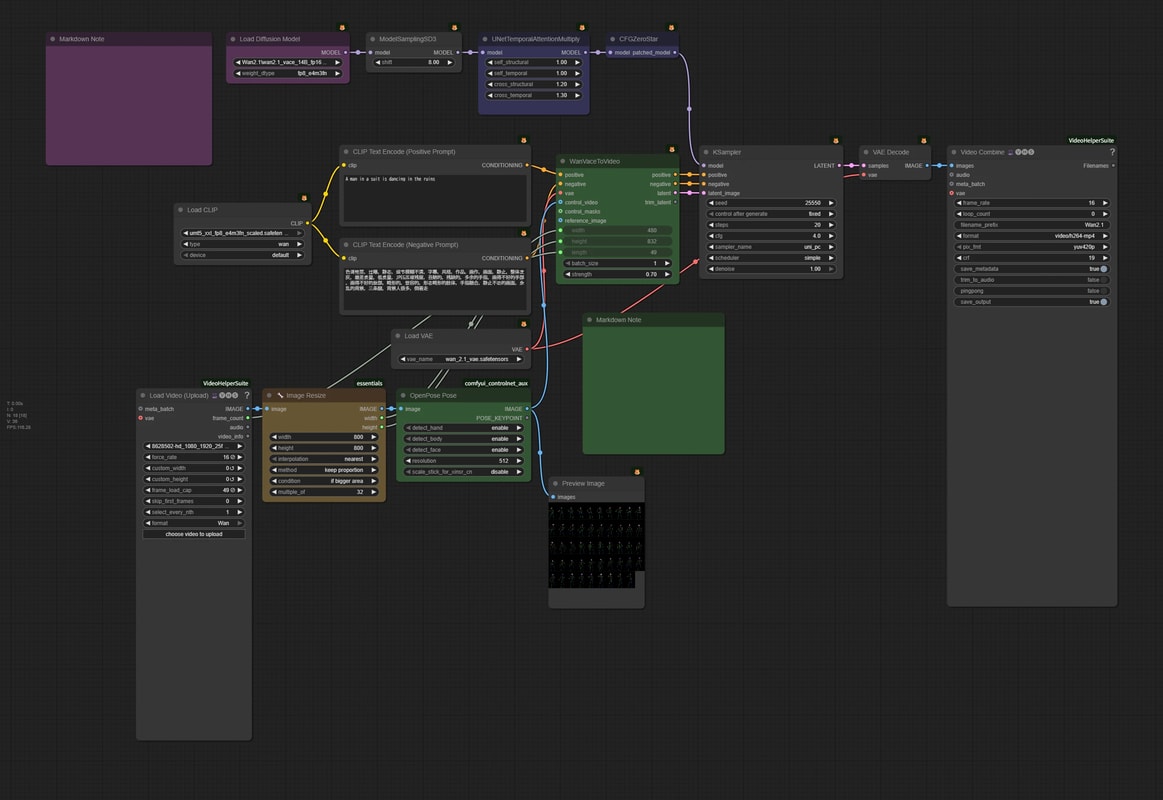

Wan2.1_VACE_inpainting.json
  • Use a video filled with gray (RGB 127,127,127) in the masked part for control_video.
  • Use the original video as is for the untouched area, and replace only the part filled with gray.

Temporal Outpainting (Extension)

Extend the "time direction" of the video. The mechanism uses only the first N frames of the input video and generates the continuation.

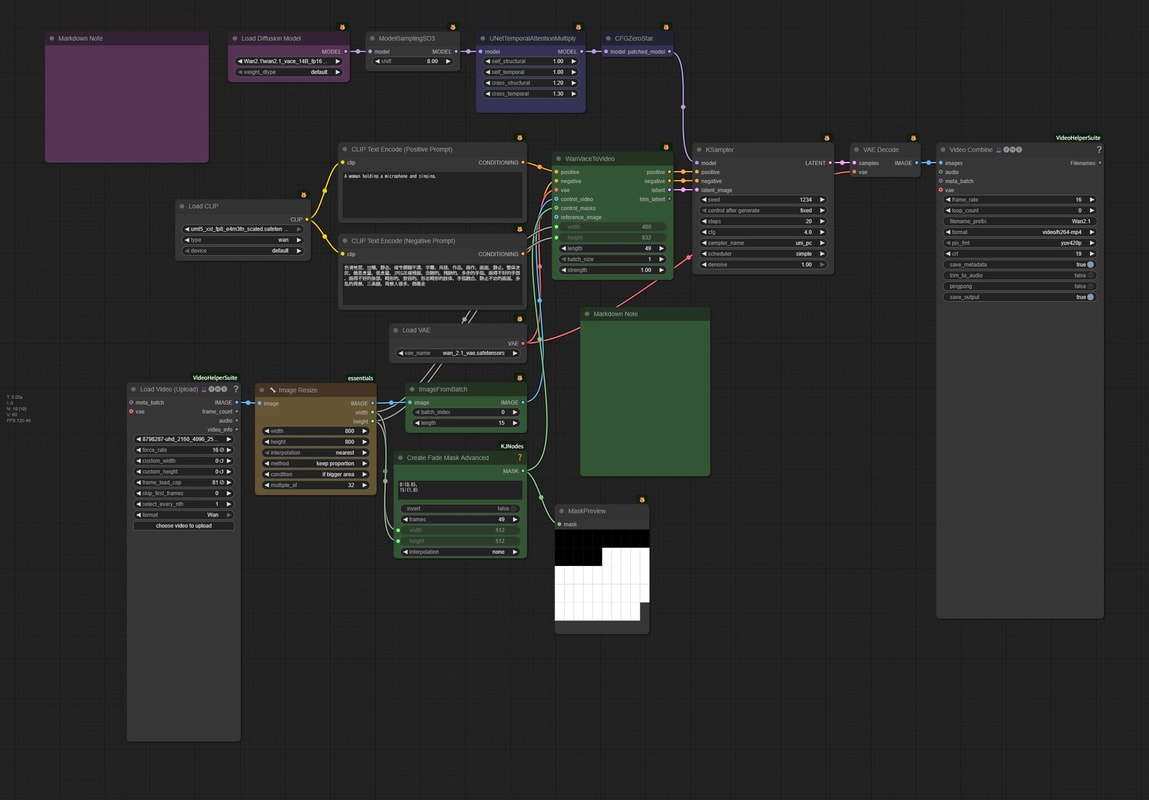

Wan2.1_VACE_Extension.json
  • Make the section you want to generate continuation (e.g., from 11th frame onwards) a full mask with Create Fade Mask Advanced etc.
  • If you leave unused frames as is in control_video, they will become unnecessary guides, so the trick is to fill the parts you want to generate with mask or gray.

Looping Video

Apply Extension to make an existing video loop.

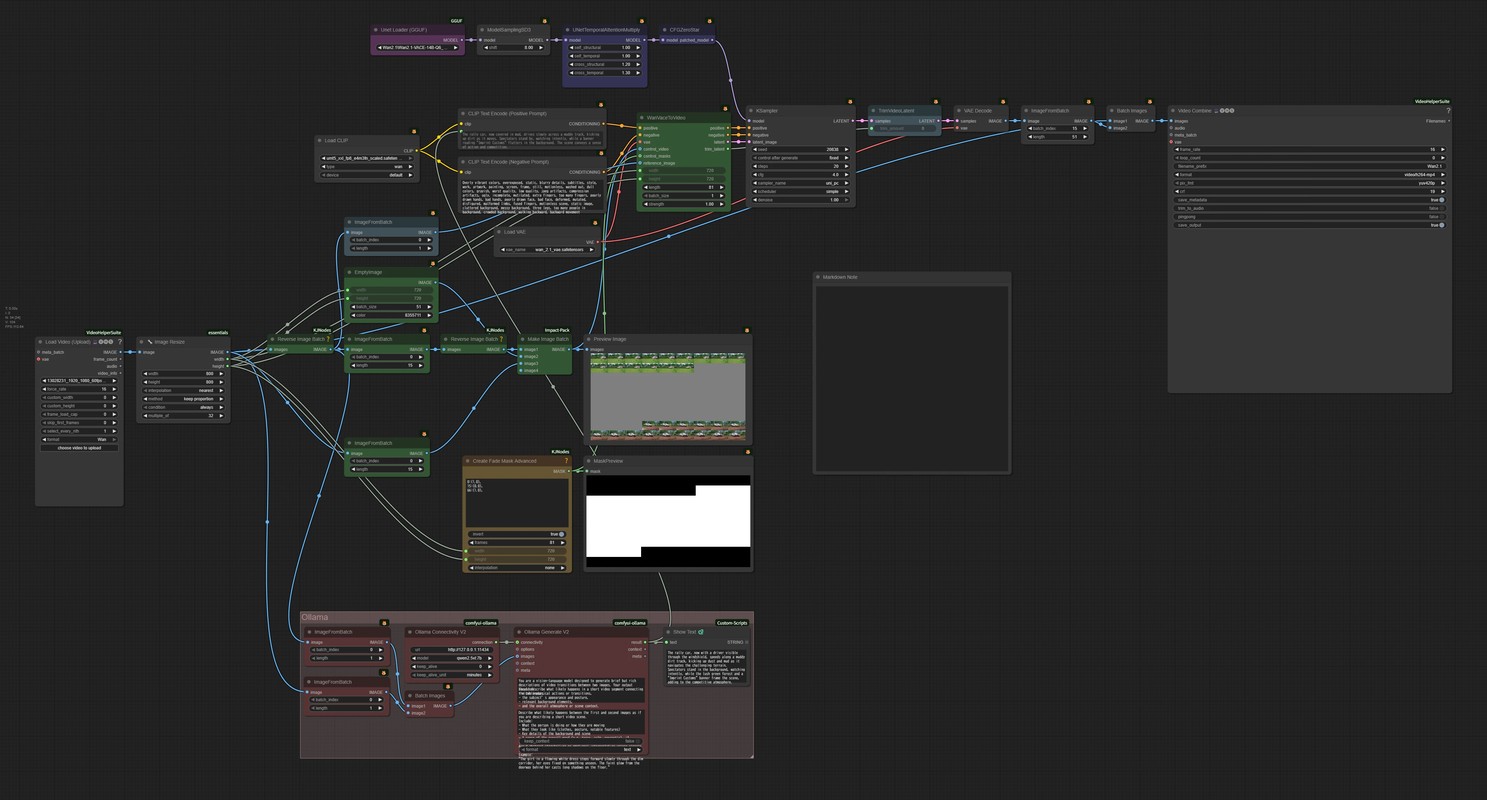

Wan2.1_VACE_Extension_loop.json
  • Use the beginning and end of the original video, and loop by generating frames connecting them with Extension.
